In a residential apartment, if there is leakage, how can we detect the source of leakage? What should we look at?

This is a very complex question and hence there will a complex reply.....:D

Lets start with the most common leakages point by point and here we are going to talk only on how to detect the leakages.......

  1. PLINTH LEVEL, if there is subsoil water then due to capillary action damp patches will be seen on the walls or flooring etc. this could be because we have not left any pressure release pipes or not provided damp proof course etc. It also could be due to leakages in pipes like domestic risers lines or drainage lines which have ruptured or joints have given way etc and water is oozing out from the cracks in the respective PCC etc.
  2. EXTERNAL WALLS, if you see leakages on the inside then such leakages could be due to cracks in the external plaster, separating joint between masonry and RCC elements, if its mivan ( alluminium shuttering ) walls then it could be at the starter block, wall ties, or honeycombs etc or construction joints.
  3. INTERNAL WALLS, if you see leakages internally then it could be due to bath/toilet walls attached to living/kit/bed etc and mostly its due to leaking plumbing joints or drainage joints, this can be identified by using colored water either by dosing color in storage tank to find out plumbing leakage or using colored water in-floor traps to detect the drainage leakages.
  4. TERRACE LEVEL, by ponding water on the terrace you can detect the source of leakages from the terrace.
  5. BATHROOM/TOILETS, by ponding water in the bathroom/toilets for minimum of 24 hours you can detect leakages from bathrooms/toilets
  6. EXTERNAL WALLS, using a dripper from terrace parapet wall and drip water on the walls for at least 1 hour to create a rainfall situation and check the leakages from external walls.
  7. OHWT you can once again use colored water to trace the source of leakages at the color will be visible from bottom or sidewalls.
  8. Sometimes it becomes difficult to find the source but if you see the seepages internally then you can make use of MOISTURE METERS here depending on the percentage of moisture in the meter you can ascertain more the moisture more near you are to the source of leakage.
  9. When the interior of the building develops low pressure when compared with that of the external pressure, due to suction effect, during high humid conditions, the air carrying external moisture may intrude inside the structure causing damp conditions.
  10. During erection of scaffolding particularly for external plaster, holes are made for supporting one end of horizontal member of scaffold in walls. These holes are filled up negligently while removing scaffolding. Such holes are never filled with care. And again it is difficult to cure such isolated patches. Hence all such holes become a source of water into walls and appear as damp patches later on in walls.
  11. Similarly while installing Air conditioner particularly split units, holes are made in walls for gas/exhaust pipes. Such holes too are never filled with care and hence can be a source of leakages internally.
  12. Poor quality bricks (having water absorption > 20%) and or with poor cement mortar joints.
  13. Sometimes moisture trapped between the matrix of concrete and the surface finishing such as exterior emulsion paints does not allow the moisture to escape or migrate to other places, thereby causing dampness. Hope that am able to put down some of my experiences if others have additional information then request to put down your experiences so that all at CIVIL4M will benefit.



  • Like
Reactions: Vaibhav jadhav

Mech42

Senior Member
EXTERNAL WALLS, if you see leakages on the inside then such leakages could be due to cracks in the external plaster, separating joint between masonry and RCC elements, if its mivan ( alluminium shuttering ) walls then it could be at the starter block, wall ties, or honeycombs etc or construction joints.
Sir Is it possible that Rain water flow contineously from Slab cracks (which was entered from External plaster i.e. joint of Masonary and RCC Slab)


Mech42

Senior Member
TERRACE LEVEL, by ponding water on the terrace you can detect the source of leakages from the terrace.

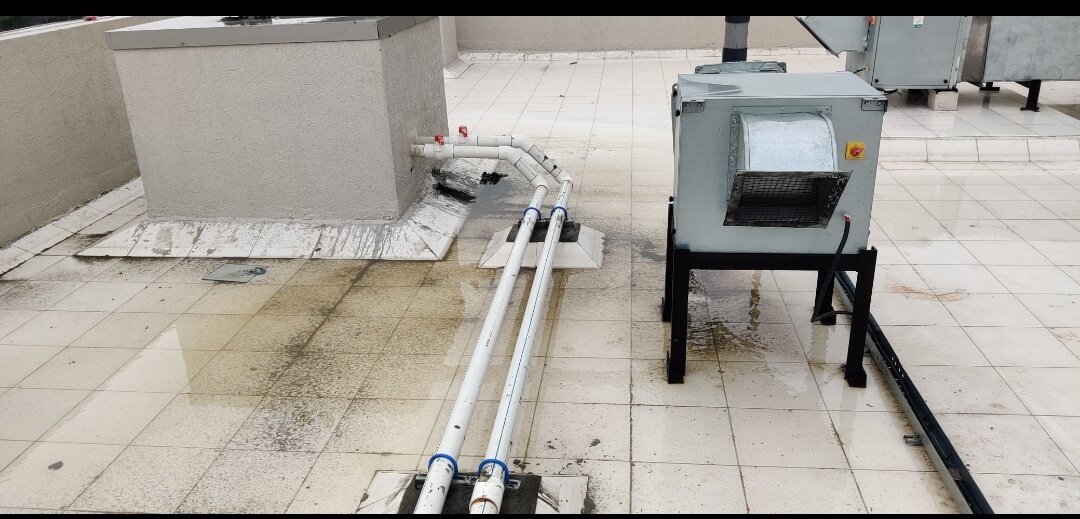

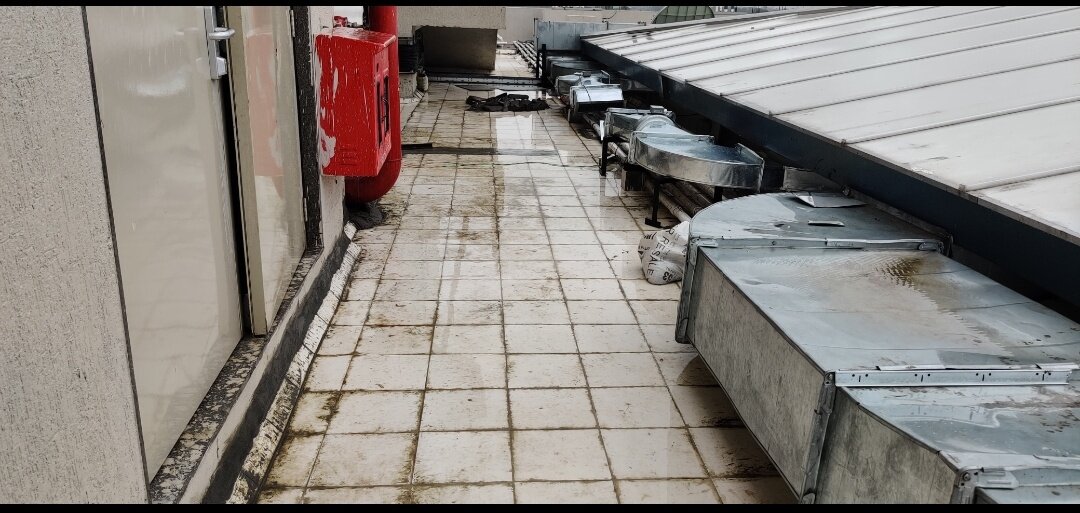

Sir, Is it possible that Rain water broke the barrier of Tiles > Protective screed > APP Membrane > Mother Slab (Shrinkage Crack). We have found some leakages in slab from location shown in Picture.


Attachments

  • Screenshot_20210618-191412.jpg
    231.6 KB · Views: 10
  • Screenshot_20210618-191340.jpg
    226.5 KB · Views: 10

Dnyan Deshmukh

Staff member
Sir, Is it possible that Rain water broke the barrier of Tiles > Protective screed > APP Membrane > Mother Slab (Shrinkage Crack). We have found some leakages in slab from location shown in Picture.
Yes it is possible for water to do that when it found weakest link.

To repair, if you have tiled all terrace, ensure you use only epoxy grout exterior grade type to fill those joint.

Joint filling is only possible when there is at least 1mm gap in tiles, ideal size is 2 to 3mm.

Paper joint or jointless tiling will cause the water to seep down when there is a stagnant water.

  • Like
Reactions: Mech42
In a residential apartment, if there is leakage, how can we detect the source of leakage? What should we look at?
Hi,
As I am seeing in picture water stagnate on the floor, you have to give proper slope in tile, so water can flow properly toward outlet pipe so 50% problem will resolve, balance 50% fill all the tile joint properly with external epoxy grout, I fill you will do this problem can minimize.
