Jitendra1 Newbie mumbai Jul 12, 2018 #1 how to calculate cutting length of helix or spiral ...? Plz suggest me Reactions: Bhadresh Gondaliya

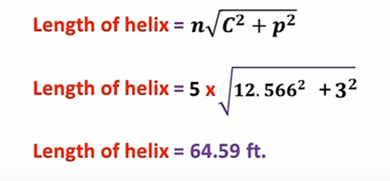

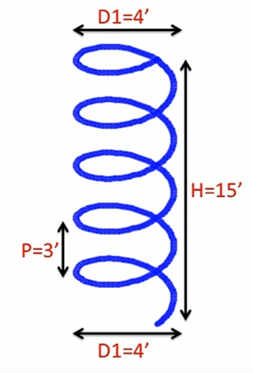

amd007 Elite Member mumbai Jul 13, 2018 #2 Calculation of cutting length of a helix Considering the following data for illustration : Ht of helix - 15' Top dia - 4' Bottom dia - 4' pitch - 3' n = no of turns C = circumference of the spiral p = pitch Hope its clear to you how to do it..... Attachments 1531480180037.png 13.8 KB · Views: 9 1531480508187.png 41.9 KB · Views: 8 Reactions: VIDHYA SAGAR and rameshchandrapatel Upvote 0 Downvote

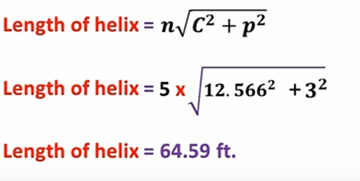

Calculation of cutting length of a helix Considering the following data for illustration : Ht of helix - 15' Top dia - 4' Bottom dia - 4' pitch - 3' n = no of turns C = circumference of the spiral p = pitch Hope its clear to you how to do it.....
Jimmi6353 Apprentice India Jul 13, 2018 #3 Length of helix = n √(c2+p2) How this formula come? Please explain it. Upvote 0 Downvote
