In civil engineering industry, the success of any big infrastructure project largely depends on soil strength and bearing capacity at the construction site. Soil investigations are conducted before designing foundations to determine whether the ground is capable of bearing the imposed loads safely. Of the many geotechnical techniques, Standard Penetration Test (SPT) is one of the most common field tests.
The Standard Penetration Test SPT gives an index of soil resistance called the N-value, from which soil density, bearing capacity, and compatibility for various foundations are estimated. The method is standardized in India by IS 2131:1981.
The test yields the Standard Penetration Test N value, which is directly related to soil strength and density. Higher N-values indicate denser and stronger soils, while lower values suggest loose or weak soil conditions.
Standard Penetration Test used for soil : The test is primarily used to assess soil bearing capacity, relative density, and the presence of weak layers, thereby guiding the design of safe and economical foundations.
Split-spoon sampler – a steel tube that harvests disturbed samples of soil.

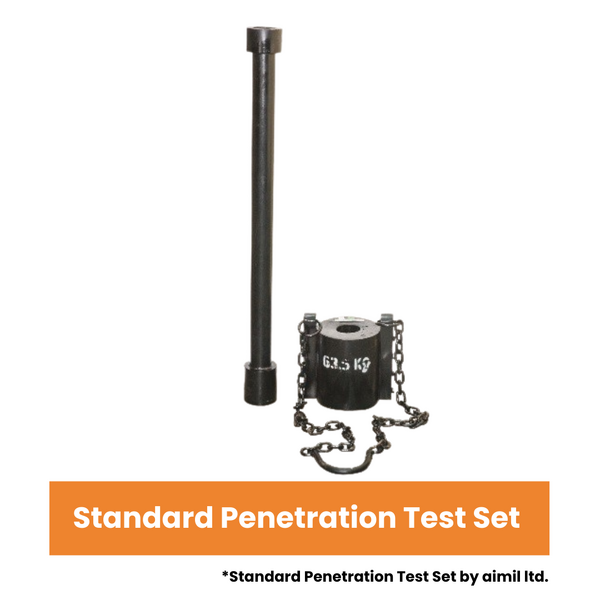

Hammer – 63.5 kg weight, allowed to fall from a standard height of 750 mm.
Drill rods – to attach the sampler to the hammer.
Drilling rig – for the formation of boreholes at specified depths.
Measuring instruments and record papers – for blow counts and penetration depth.
In India, the majority of the geotechnical laboratories and site investigation companies employ equipment made as per the requirements of the IS code. Sophisticated rigs can have automatic trip hammers for more uniform results.
Borehole Preparation – Drive a borehole to the target testing depth.
Positioning the Sampler – Hook up the split-spoon sampler with drill rods and insert it in the borehole.
Driving the Sampler – Repeatly drop a hammer of 63.5 kg weight from 750 mm height to drive the sampler into the ground.
Seating Drive – The initial 150 mm penetration is referred to as seating and is not counted.
Measurement Drive – The blows that are needed to achieve the next 300 mm penetration are counted.
Calculation of N-value – The blows counted are the SPT N-value for the given depth.
Sample Collection – The sampler is collected, carrying soil samples for laboratory classification.
The step-by-step process is usually outlined in Standard Penetration Test PDF reports submitted by consultants, contractors, and academic institutions.
If STP N-value 0 – 4 shows Soil Condition Very loose soil
If STP N-value 5 – 10 shows Soil Condition Loose soil
If STP N-value 11 – 30 Soil Condition Medium dense soil
If STP N-value 31 – 50 Soil Condition Dense soil
If STP N-value Greater than 50 Soil Condition Very dense soil / refusal
The interpretation of results allows engineers to classify soil conditions and determine whether shallow foundations are sufficient or deep foundations such as piles are required.
Gives a direct measurement of soil resistance for foundation design.
Assists in the estimation of bearing capacity of shallow and deep foundations.
Highlights weak or loose layers that could result in settlement or failure.
Helps in assessing liquefaction potential in seismic areas.
Provides disturbed soil samples for classification.
Without this test, it would be challenging to design safe, economical, and long-lasting foundations for mega infrastructure projects.
Easy and economical test.
Gives both soil samples and N-values.
Accepted worldwide and standardized by IS, ASTM, and other standards.
Can be used in a variety of soils.
Prepares disturbed soil samples, not appropriate for detailed laboratory strength tests.
May yield questionable results in soft clays or gravelly boulder soils.
Efficiency of energy transfer depends on hammer type and operator.
Needs corrections for overburden pressure and groundwater.
IS 2131:1981 – Method for Standard Penetration Test of Soils
Supporting codes: IS 1892:1979 (Subsurface investigation) and IS 6403:1981 (Determination of bearing capacity of shallow foundations)
These codes are the foundation for SPT test procedure PDF references and are used commonly in scholarly and professional application.
Through its apparatus, procedure, formula, report format, and IS code references, the SPT continues to be a reliable and internationally recognized test for geotechnical exploration. In spite of some limitations, its strengths and convenience guarantee that it continues to play an important role in civil engineering works in India and throughout the world.
Whatever its place within a Standard Penetration Test PDF, being presented as an SPT test report, or used directly in field study, the SPT is the basis for safe and sound infrastructure construction.
The Standard Penetration Test SPT gives an index of soil resistance called the N-value, from which soil density, bearing capacity, and compatibility for various foundations are estimated. The method is standardized in India by IS 2131:1981.
What is Standard Penetration Test in Soil Testing in civil engineering?
The Standard Penetration Test for soil testing is a field test performed inside a borehole to determine the resistance of soil to penetration. It involves driving a sampler into the ground by repeated hammer blows and recording the number of blows required.The test yields the Standard Penetration Test N value, which is directly related to soil strength and density. Higher N-values indicate denser and stronger soils, while lower values suggest loose or weak soil conditions.
Standard Penetration Test used for soil : The test is primarily used to assess soil bearing capacity, relative density, and the presence of weak layers, thereby guiding the design of safe and economical foundations.
Standard Penetration Test Apparatus used in India
The minimum SPT apparatus includes: Split-spoon sampler – a steel tube that harvests disturbed samples of soil. Hammer – 63.5 kg weight, allowed to fall from a standard height of 750 mm. Drill rods – to attach the sampler to the hammer. Drilling rig – for the formation of boreholes at specified depths.Measuring instruments and record papers – for blow counts and penetration depth.In India, the majority of the geotechnical laboratories and site investigation companies employ equipment made as per the requirements of the IS code. Sophisticated rigs can have automatic trip hammers for more uniform results.
Standard Penetration Test Procedure Step By Step
The procedure for the Standard Penetration Test comprises the following steps: Borehole Preparation – Drive a borehole to the target testing depth. Positioning the Sampler – Hook up the split-spoon sampler with drill rods and insert it in the borehole. Driving the Sampler – Repeatly drop a hammer of 63.5 kg weight from 750 mm height to drive the sampler into the ground. Seating Drive – The initial 150 mm penetration is referred to as seating and is not counted. Measurement Drive – The blows that are needed to achieve the next 300 mm penetration are counted. Calculation of N-value – The blows counted are the SPT N-value for the given depth.Sample Collection – The sampler is collected, carrying soil samples for laboratory classification.The step-by-step process is usually outlined in Standard Penetration Test PDF reports submitted by consultants, contractors, and academic institutions.
Interpretation of Results of Standard Penetration Test Based on SPT N-Value and Soil Condition From Very Loose To Very Dense Soil
If STP N-value 0 – 4 shows Soil Condition Very loose soil If STP N-value 5 – 10 shows Soil Condition Loose soil If STP N-value 11 – 30 Soil Condition Medium dense soil If STP N-value 31 – 50 Soil Condition Dense soil If STP N-value Greater than 50 Soil Condition Very dense soil / refusalThe interpretation of results allows engineers to classify soil conditions and determine whether shallow foundations are sufficient or deep foundations such as piles are required.
Significance of Standard Penetration Test in Civil Engineering
The SPT is important to civil engineering projects because it: Gives a direct measurement of soil resistance for foundation design. Assists in the estimation of bearing capacity of shallow and deep foundations. Highlights weak or loose layers that could result in settlement or failure. Helps in assessing liquefaction potential in seismic areas.Provides disturbed soil samples for classification.Without this test, it would be challenging to design safe, economical, and long-lasting foundations for mega infrastructure projects.
Merits of Standard Penetration Test in Geotechnical Testing Services
Easy and economical test. Gives both soil samples and N-values. Accepted worldwide and standardized by IS, ASTM, and other standards. Can be used in a variety of soils.Drawbacks of Standard Penetration Test in Geotechnical Testing Services
Prepares disturbed soil samples, not appropriate for detailed laboratory strength tests. May yield questionable results in soft clays or gravelly boulder soils. Efficiency of energy transfer depends on hammer type and operator. Needs corrections for overburden pressure and groundwater.IS Code Standard Penetration Test in India
In India, the test is conducted according to:IS 2131:1981 – Method for Standard Penetration Test of SoilsSupporting codes: IS 1892:1979 (Subsurface investigation) and IS 6403:1981 (Determination of bearing capacity of shallow foundations)These codes are the foundation for SPT test procedure PDF references and are used commonly in scholarly and professional application.
Final Thought on Standard Penetration Test for Soil Testing in Civil Engineering testing industry
The Standard Penetration Test (SPT) is one of the most rudimentary tools available for soil investigation and foundation engineering. It provides the SPT N-value, which gives vital information on soil strength, density, and bearing capacity.Through its apparatus, procedure, formula, report format, and IS code references, the SPT continues to be a reliable and internationally recognized test for geotechnical exploration. In spite of some limitations, its strengths and convenience guarantee that it continues to play an important role in civil engineering works in India and throughout the world.
Whatever its place within a Standard Penetration Test PDF, being presented as an SPT test report, or used directly in field study, the SPT is the basis for safe and sound infrastructure construction.
