What is DIAGRID STRUCTURE?

The diagrid is a framework of diagonally intersecting metal, concrete or wooden beams that are used in the construction of buildings and roofs. It requires less structural steel than a conventional steel frame. It is also beneficial to build high rise steel towers without steel. This kind of design will also help in protecting the environment from pollution caused by conventional construction method.




CASE STUDY:- i-Lab Building, Hyderabad





Location:- Hyderabad
Client:- iLabs HTC Pvt Ltd
Architect:- Uday Joshi, Mumbai
Structural Consultant:- Construction Catalysers Pvt. Ltd.
Project Management Consultant:- Construction Catalysers Pvt. Ltd.
Software used:- Cad, 3D Max, Structural Softwares
Steel Producers:- Tata Structura
RCC Contractor:- Construction Catalysers Pvt. Ltd.
Steel Fabricator:- Construction Catalysers Pvt. Ltd.
Surface Protection (Painting etc):- Construction Catalysers Pvt. Ltd.
Electrical Contractor:- Construction Catalysers Pvt. Ltd.
Plumbing & Sanitary Contractor:- Construction Catalysers Pvt. Ltd.
Cost of project:- 12 Crore (For Steel Work)
Structural Steel requirement:- Not specified
Year of Commencement:- Jan-2008
Year of Completion:- Dec-2009



Project Description
This prominent shell (55m x 23m x 21m) design is characterized by the use of a unique diagrid structure used effectively to provide visual lightness and barrier-free usable office spaces inside. The self-supporting form with minimal vertical supports lends the building an innovative look and reduces low life-cycle costs further. This five-storied pre-fabricated lightweight structure took eight months for construction.
The skin of the building is a network of circular hollow M.S. sections with nodes that are welded during assembly. Steel floor beams are spanned between the peripheral nodes and central ring beam and these floor beams support the composite floor slabs. The core that houses the services has columns of reinforced concrete with optimal and varying thickness of structural steel usage.




The dia-grid shell is clad with hard-coated glass that ensures a high level of visual comfort with a good level of reflection-free sunlight. The central portion of roof top floor, which is the roof of the board room, is covered with water resistant composite construction that reflects partial direct sunlight.
The i-Lab building has become an icon in its class – and it owes this status to the unique approach towards the structure and architectural expression.






MOHAMMED ABDUL RAFAY

Founder Member
Staff member
Sep 7, 2017
316
133
Hyderabad
#3
What is DIAGRID STRUCTURE?

The diagrid is a framework of diagonally intersecting metal, concrete or wooden beams that are used in the construction of buildings and roofs. It requires less structural steel than a conventional steel frame. It is also beneficial to build high rise steel towers without steel. This kind of design will also help in protecting the environment from pollution caused by conventional construction method.

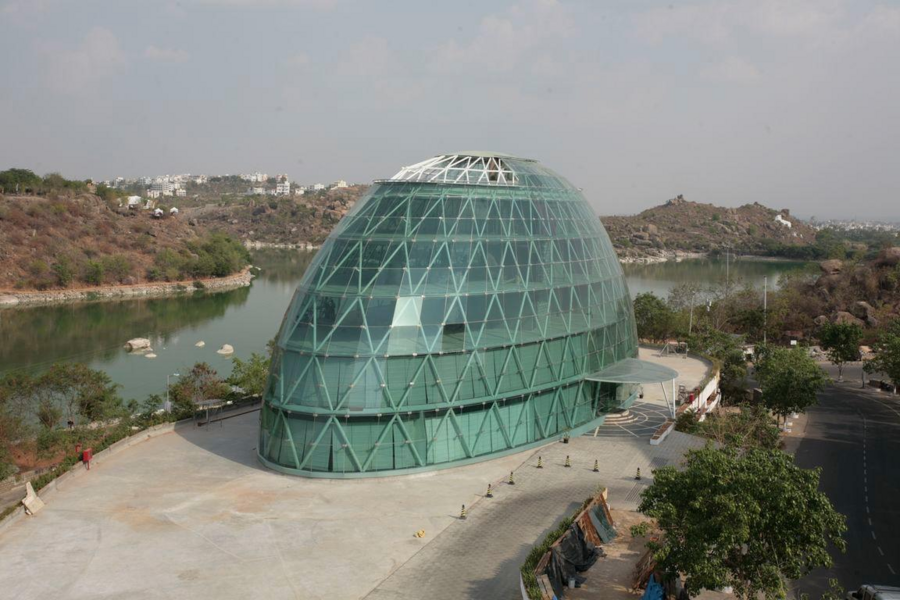

CASE STUDY:- i-Lab Building, Hyderabad

View attachment 1881



Location:- Hyderabad
Client:- iLabs HTC Pvt Ltd
Architect:- Uday Joshi, Mumbai
Structural Consultant:- Construction Catalysers Pvt. Ltd.
Project Management Consultant:- Construction Catalysers Pvt. Ltd.
Software used:- Cad, 3D Max, Structural Softwares
Steel Producers:- Tata Structura
RCC Contractor:- Construction Catalysers Pvt. Ltd.
Steel Fabricator:- Construction Catalysers Pvt. Ltd.
Surface Protection (Painting etc):- Construction Catalysers Pvt. Ltd.
Electrical Contractor:- Construction Catalysers Pvt. Ltd.
Plumbing & Sanitary Contractor:- Construction Catalysers Pvt. Ltd.
Cost of project:- 12 Crore (For Steel Work)
Structural Steel requirement:- Not specified
Year of Commencement:- Jan-2008
Year of Completion:- Dec-2009



Project Description
This prominent shell (55m x 23m x 21m) design is characterized by the use of a unique diagrid structure used effectively to provide visual lightness and barrier-free usable office spaces inside. The self-supporting form with minimal vertical supports lends the building an innovative look and reduces low life-cycle costs further. This five-storied pre-fabricated lightweight structure took eight months for construction.

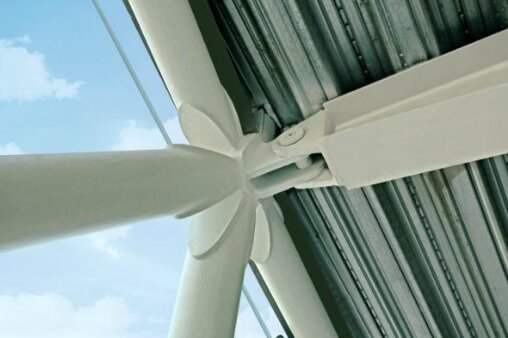

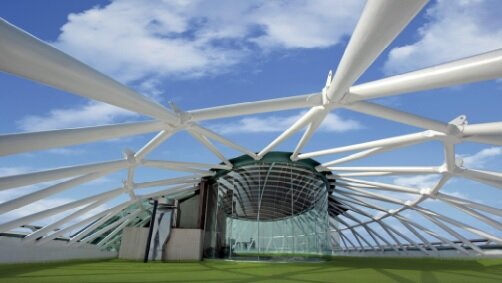

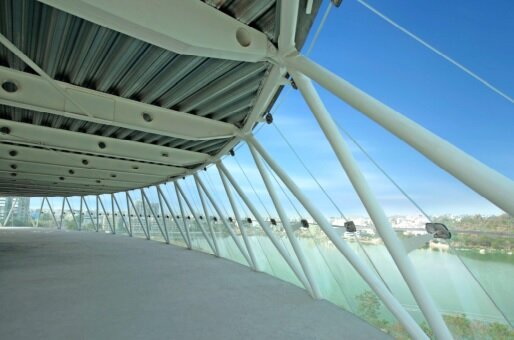

The skin of the building is a network of circular hollow M.S. sections with nodes that are welded during assembly. Steel floor beams are spanned between the peripheral nodes and central ring beam and these floor beams support the composite floor slabs. The core that houses the services has columns of reinforced concrete with optimal and varying thickness of structural steel usage.
View attachment 1888



View attachment 1887

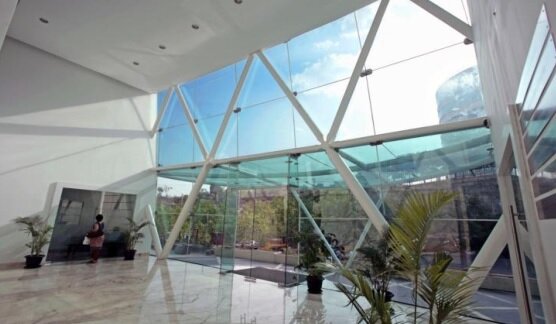

The dia-grid shell is clad with hard-coated glass that ensures a high level of visual comfort with a good level of reflection-free sunlight. The central portion of roof top floor, which is the roof of the board room, is covered with water resistant composite construction that reflects partial direct sunlight.
The i-Lab building has become an icon in its class – and it owes this status to the unique approach towards the structure and architectural expression.


View attachment 1889

View attachment 1890
Very well written about the DIAGRID STRUCTURE, today i have learned about one more new topic in the field of Civil Engineering

#4
wow, i live in Hyderabad itself and i didn't knew i will find a diagrid structure in Hyderabad. soon will visit and see the amazing structure.
thanks for the blog, its really helpful.
if you have any more information about diagrid structures can you share it with me, as my thesis project is on diagrid structural systems.
