Presentation on Types of waterproofing and how to do it

[Dnyan Deshmukh]

Presentation on Types of waterproofing and how to do it

This presentation will help you in understanding, types of waterproofing method's available for ensuring waterproof structures.

Waterproofing is most important activity and need to be supervised strictly, it lead to bad advertisement if structures start leaking or showing damp patch later when customers or house owner reside in it.

It make a more panic situation when leaking water spoils the finishes done at home.

There are many types of waterproofing for doing on internal and external faces of structures.
below are the some slides snapshot from presentation

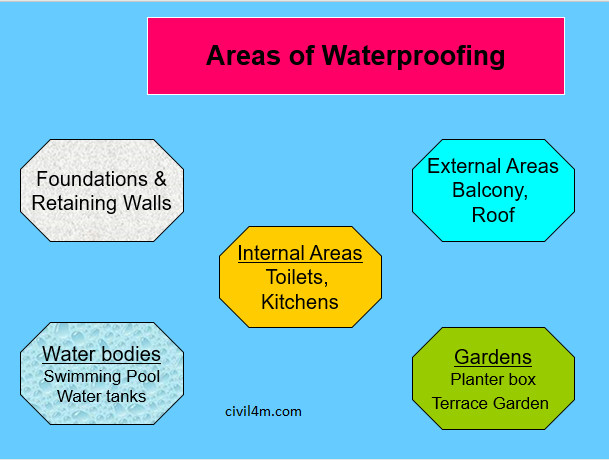

Areas of Waterproofing

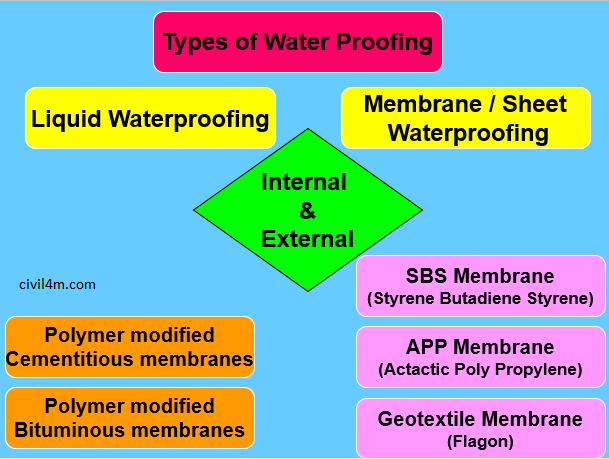

types of waterproofing


Precaution to be taken for waterproofing

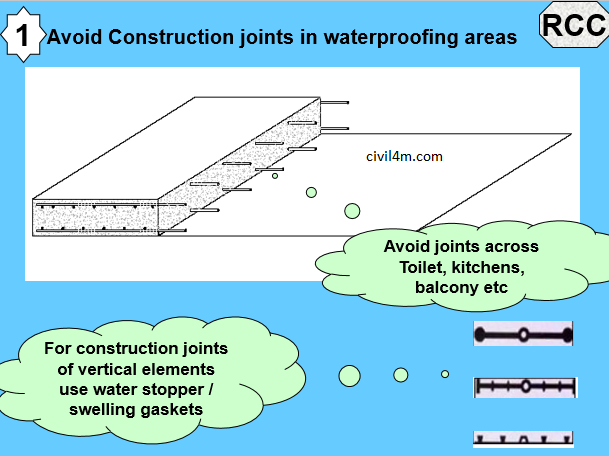

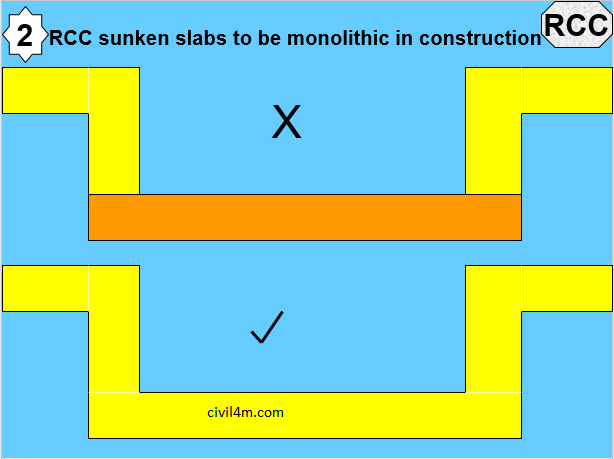

In RCC for construction joints

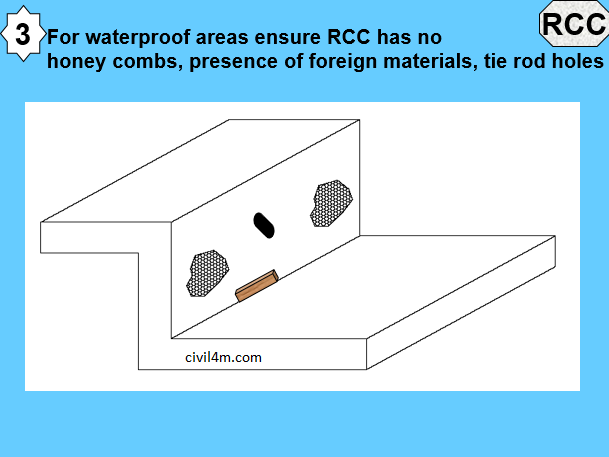

RCC Surface Preparation

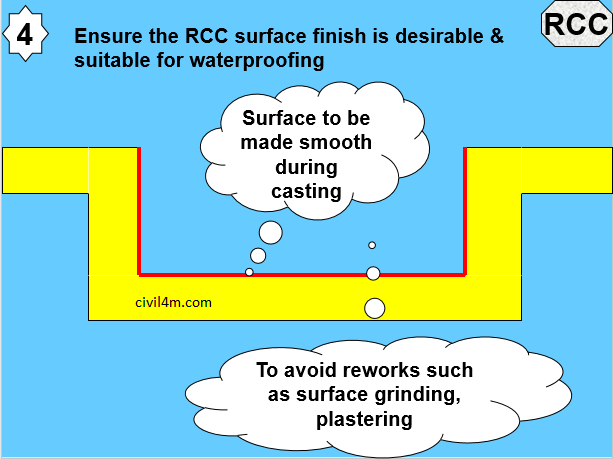

RCC Surface Finish

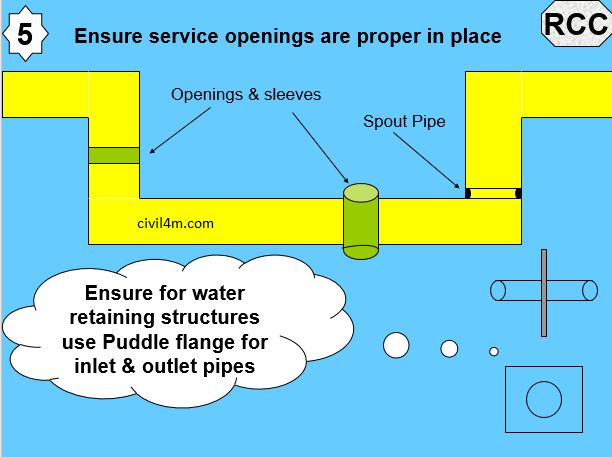

Service opening locations

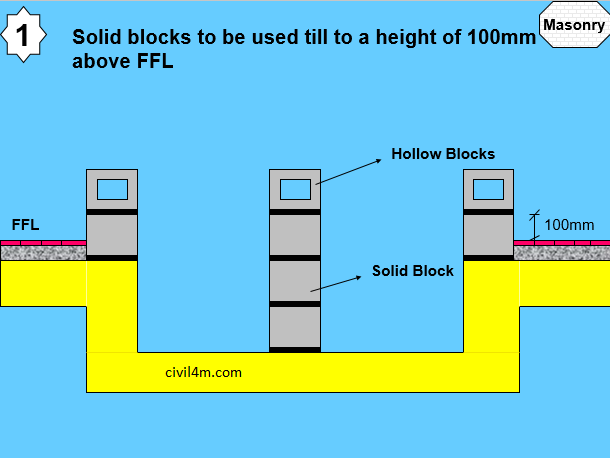

Precautions during brickworks

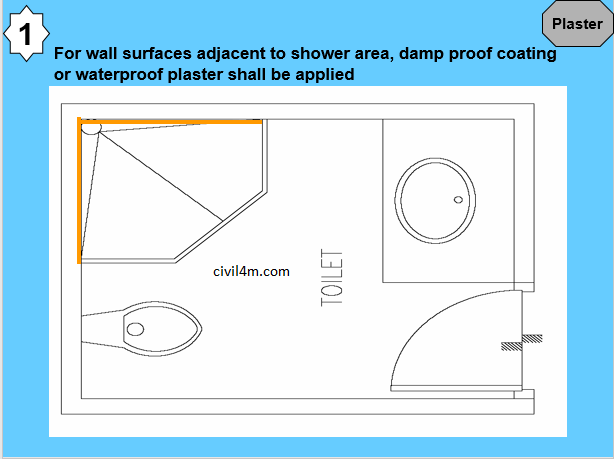

Precaution during plastering activity


and there are many more things which you need to know about how to do waterproofing and what type at what location etc.

Detailed presentation on waterproofing is attached below, you can download it by clicking on it.



[Shubham Gomare]

Nice work sir
Sir can you please provide me how the rate analysis of brickbat coba is done



[rameshchandrapatel]

Nice work sir
Sir can you please provide me how the rate analysis of brickbat coba is done

Please refer CPWD Delhi Analysis of Rate Volume 1 and 2. It is available on official website.



[Arshad Hussain]

Thanks



[Akash 2]

I need information about brick bat water proofing.. plz give how to do in toilet sunk



[CHSREENIVASARAO]

very nice presentation and useful who are on the job



[Josese Cavunisautu]

Presentation on Types of waterproofing and how to do it

This presentation will help you in understanding, types of waterproofing method's available for ensuring waterproof structures.

Waterproofing is most important activity and need to be supervised strictly, it lead to bad advertisement if structures start leaking or showing damp patch later when customers or house owner reside in it.

It make a more panic situation when leaking water spoils the finishes done at home.

There are many types of waterproofing for doing on internal and external faces of structures.
below are the some slides snapshot from presentation

Areas of Waterproofing
View attachment 2166

types of waterproofing
View attachment 2167

Precaution to be taken for waterproofing
View attachment 2168

In RCC for construction joints
View attachment 2169

View attachment 2170

RCC Surface Preparation

View attachment 2171

RCC Surface Finish

View attachment 2172

Service opening locations

View attachment 2173

Precautions during brickworks
View attachment 2174

Precaution during plastering activity
View attachment 2175

and there are many more things which you need to know about how to do waterproofing and what type at what location etc.

Detailed presentation on waterproofing is attached below, you can download it by clicking on it.

thank you very much sir



[Gnyoganarasimhan]

Nice work sir
Sir can you please provide me how the rate analysis of brickbat coba is done



[Gnyoganarasimhan]

Cpwd RATE ANALYSIS BOOK IS AVAILABLE AT JAIN BOOK HOUSE
IF YOU ARE RESDING OUTSIDE DELHI YOU CAN SEND MONEY TO THIS AGENCY AND IT WILL BE DELEVERED TO YOU
In this book rate analysis is available
Take the material and labor components and the rate in your area is to be considered



[gatturam]

Presentation on Types of waterproofing and how to do it

This presentation will help you in understanding, types of waterproofing method's available for ensuring waterproof structures.

Waterproofing is most important activity and need to be supervised strictly, it lead to bad advertisement if structures start leaking or showing damp patch later when customers or house owner reside in it.

It make a more panic situation when leaking water spoils the finishes done at home.

There are many types of waterproofing for doing on internal and external faces of structures.
below are the some slides snapshot from presentation

Areas of Waterproofing
View attachment 2166

types of waterproofing
View attachment 2167

Precaution to be taken for waterproofing
View attachment 2168

In RCC for construction joints
View attachment 2169

View attachment 2170

RCC Surface Preparation

View attachment 2171

RCC Surface Finish

View attachment 2172

Service opening locations

View attachment 2173

Precautions during brickworks
View attachment 2174

Precaution during plastering activity
View attachment 2175

and there are many more things which you need to know about how to do waterproofing and what type at what location etc.

Detailed presentation on waterproofing is attached below, you can download it by clicking on it.

YOU ARE EDUCATING US BY GREAT ZEAL



[kranjan]

Dear Sir,
Really nice and real study information it look like.
would eager to see any study made on type of water proof system wise performance rate.
I hv been in this construction field last 25Years where I take ownership in delivering high end quality product and outstanding quality workmanship,
but some times I fail especially in waterproof just because improper material chosen in spec / contracts for appropriate location viz bituminous water proof membrane in water retaining structure like sump / OHT etc.



[Dnyan Deshmukh]

Chain is as strong as its weakest link, same is true for waterproofing.

Ensuring a mother surface completely watertight before starting a waterproof coating activity is the key for Zero Leakage Assurance.

would eager to see any study made on type of water proof system wise performance rate.

I haven't done such study completely yet, but will be happy to share my finding once i complete my research on water-tightness of structures which includes structure itself + the waterproof Coating done on it.

I also request forum members who are having expertise or good knowledge in this section to share there experiences, it will help other members to increase their competencies.

Thank You @kranjan sir, for your reply.



[mahtab220]

Presentation on Types of waterproofing and how to do it

This presentation will help you in understanding, types of waterproofing method's available for ensuring waterproof structures.

Waterproofing is most important activity and need to be supervised strictly, it lead to bad advertisement if structures start leaking or showing damp patch later when customers or house owner reside in it.

It make a more panic situation when leaking water spoils the finishes done at home.

There are many types of waterproofing for doing on internal and external faces of structures.
below are the some slides snapshot from presentation

Areas of Waterproofing
View attachment 2166

types of waterproofing
View attachment 2167

Precaution to be taken for waterproofing
View attachment 2168

In RCC for construction joints
View attachment 2169

View attachment 2170

RCC Surface Preparation

View attachment 2171

RCC Surface Finish

View attachment 2172

Service opening locations

View attachment 2173

Precautions during brickworks
View attachment 2174

Precaution during plastering activity
View attachment 2175

and there are many more things which you need to know about how to do waterproofing and what type at what location etc.

Detailed presentation on waterproofing is attached below, you can download it by clicking on it.

Thank you for sharing.



[Gnyoganarasimhan]

Good presentation
Please post waterproof details for already constructed apartment But now started leaking in toilets and overhead tank
