Compressive strength test for concrete

Dnyan Deshmukh

Staff member
Compressive strength test for concrete
Ref : IS 516

Purpose : To find out the compressive strength of concrete



Salient features of apparatus:

Compression testing machine

Specimen

Test Procedure:

Remove the cubes from water after curing period

Place the cubes in the compression testing machine in such a way that the load can be applied to the faces other than the top and bottom of the cube as cast

Apply the load gradually without any shock at a rate of 31.50 ton per minute until the cube fails

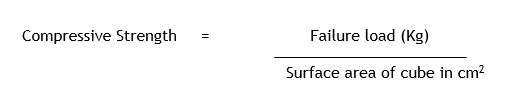

Calculation:


comp strength calculation.png
